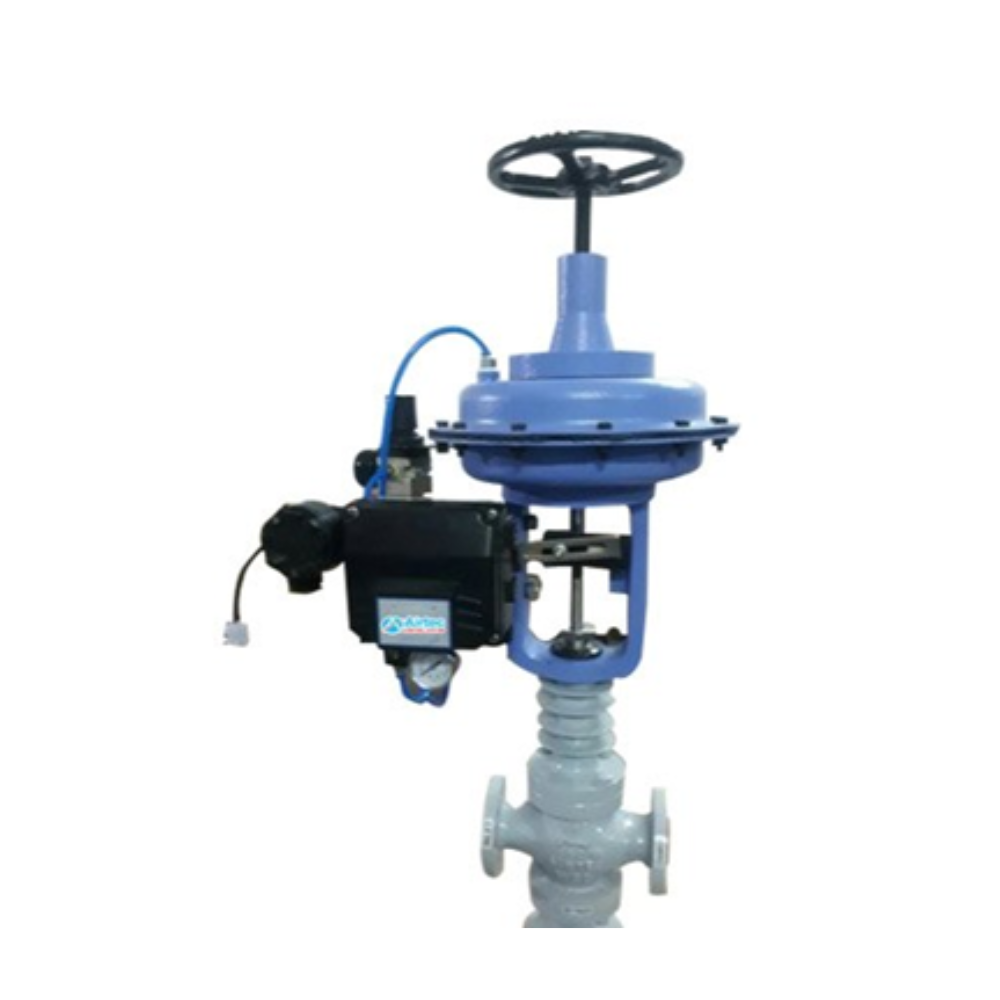

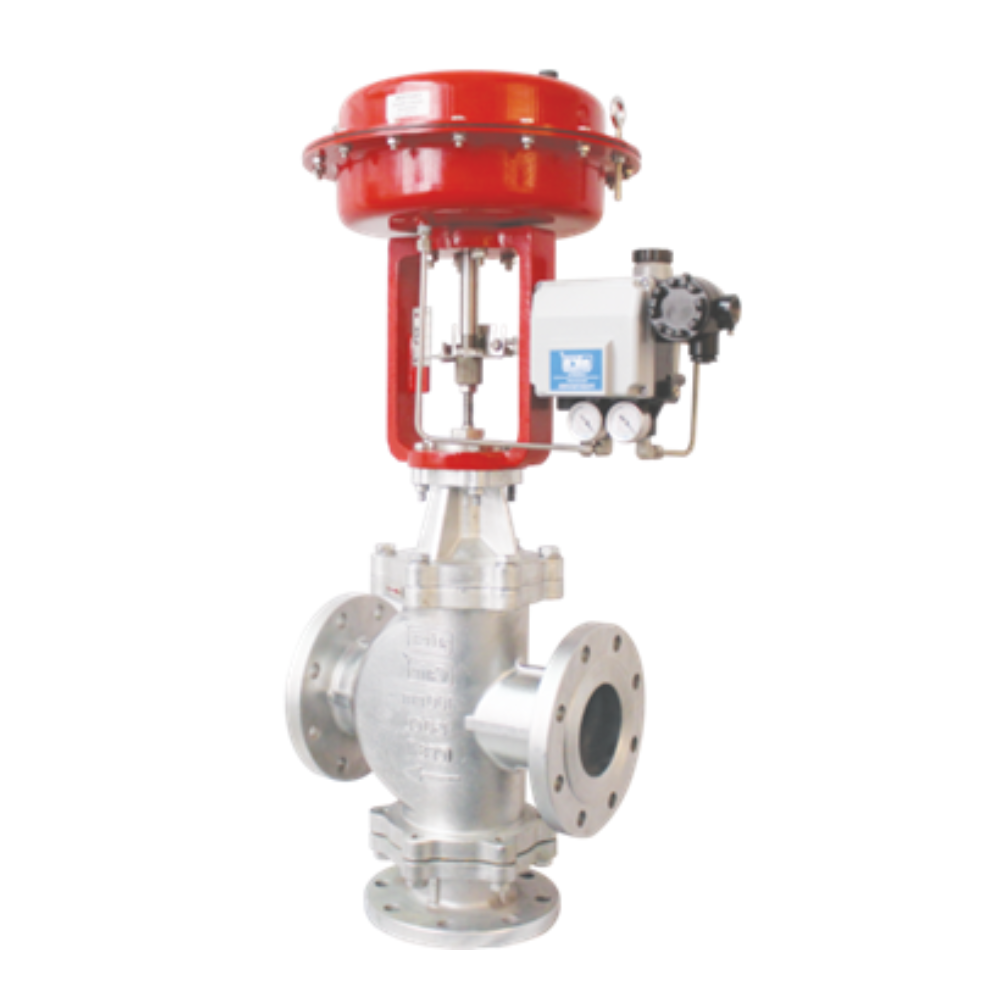

Pneumatic Control Valves

Precise Pneumatic Control for Smooth Process Regulation

Product Overview

Pneumatic Control Valve regulates the flow, pressure, or level of liquids and gases in industrial systems. It operates using a pneumatic actuator powered by compressed air, which adjusts the valve position based on control signals. These valves are widely used in process industries such as chemical, pharmaceutical, oil & gas, and water treatment plants.

Accurate flow and pressure control
Fast pneumatic response
High reliability and durability
Smooth and stable operation
Suitable for automated process control systems
Low maintenance and long service life

Get Quote

Technical Specifications

Valve Type	Pneumatic control valve (modulating control)
Actuation	Pneumatic diaphragm or piston actuator
Body Material	Stainless Steel / Carbon Steel / Cast Steel
Operating Pressure	Up to 16 bar (model dependent)
Temperature Range	?20°C to 200°C
Control Signal	4–20 mA with positioner
Connection Type	Flanged / Threaded
Media	Liquids, gases, steam, and compatible fluids
