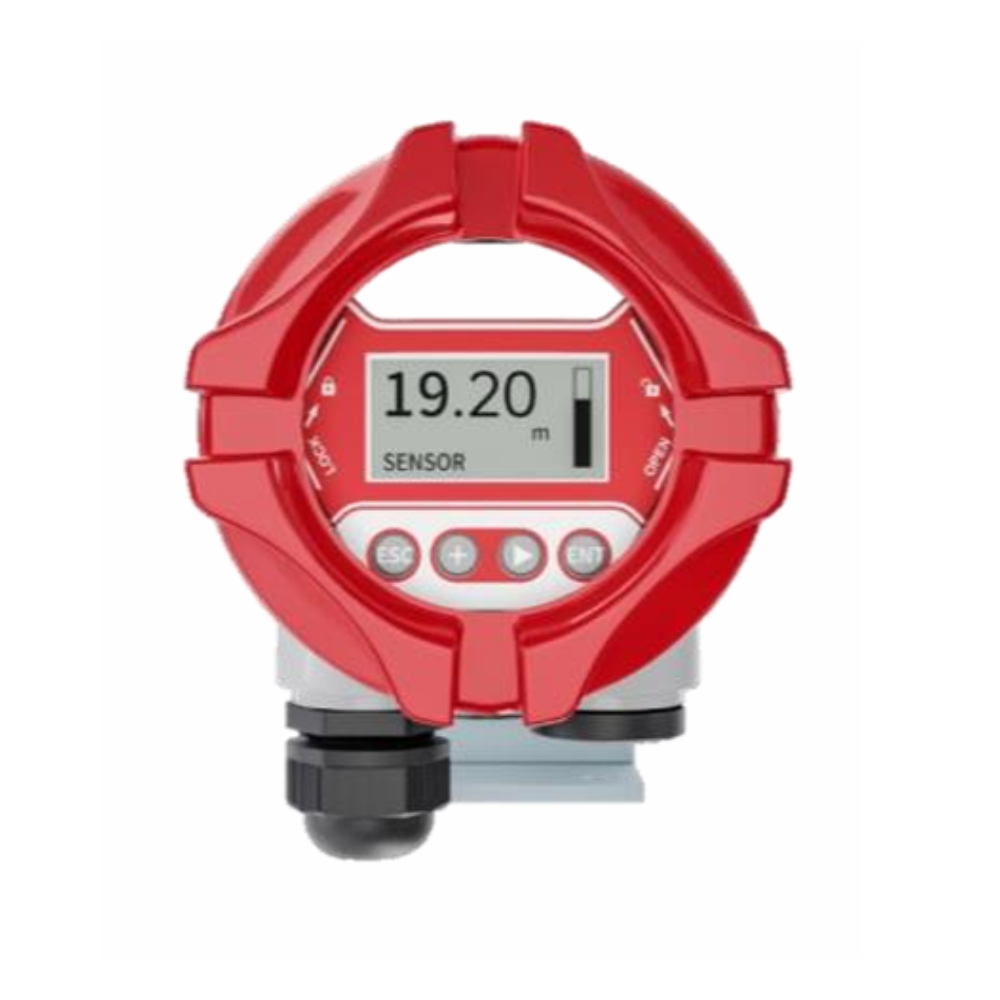

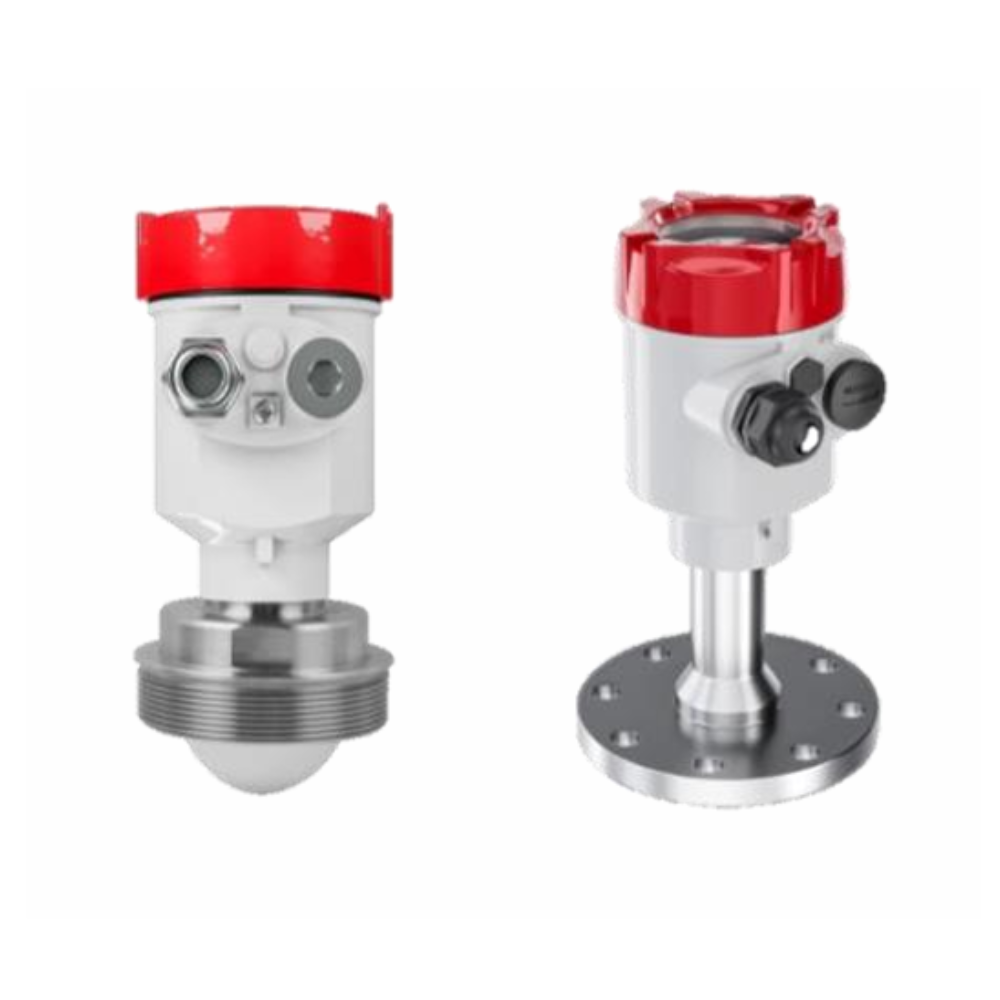

Radar Level Transmitter

High precision non-contact 80 GHz radar technology for accurate level measurement

Product Overview

  • Application: Water, West Water, Oil, Pharma, Chemical, Food & Beverages, Power
  • Models: RLT -2088 EX
  • Two-wire 4…20 mA / HART
  • Measuring range up to 15 m (49.21 ft)
  • Accuracy : 2 mm
  • Beam angle 3°
  • Operating voltage: 12…35 V DC
  • Non-contact 80 GHz radar technology
  • Protection rating IP66/IP68
  • FLP IIA IIB IIC CIMFR/ ATEX / IECEX
  • Wireless Connectivity: Bluetooth
  • Make: MDS
Download Datasheet Get Quote

Technical Specifications

Process Fitting Thread G1½, 1½ NPT, R1½
Mounting Connection Thread G1½, 1½ NPT, R1½
Process Pressure -1 … +3 bar
Process Temperature -40 … +80°C
Ambient Temperature -40 … +80°C
Output Signal 4 … 20 mA / HART
Technology 80 GHz Non-contact Radar
Protection IP66 / IP68
Material SS316/ SS316L /PVDF wetted parts, FKM seal, PUR insulated cable
