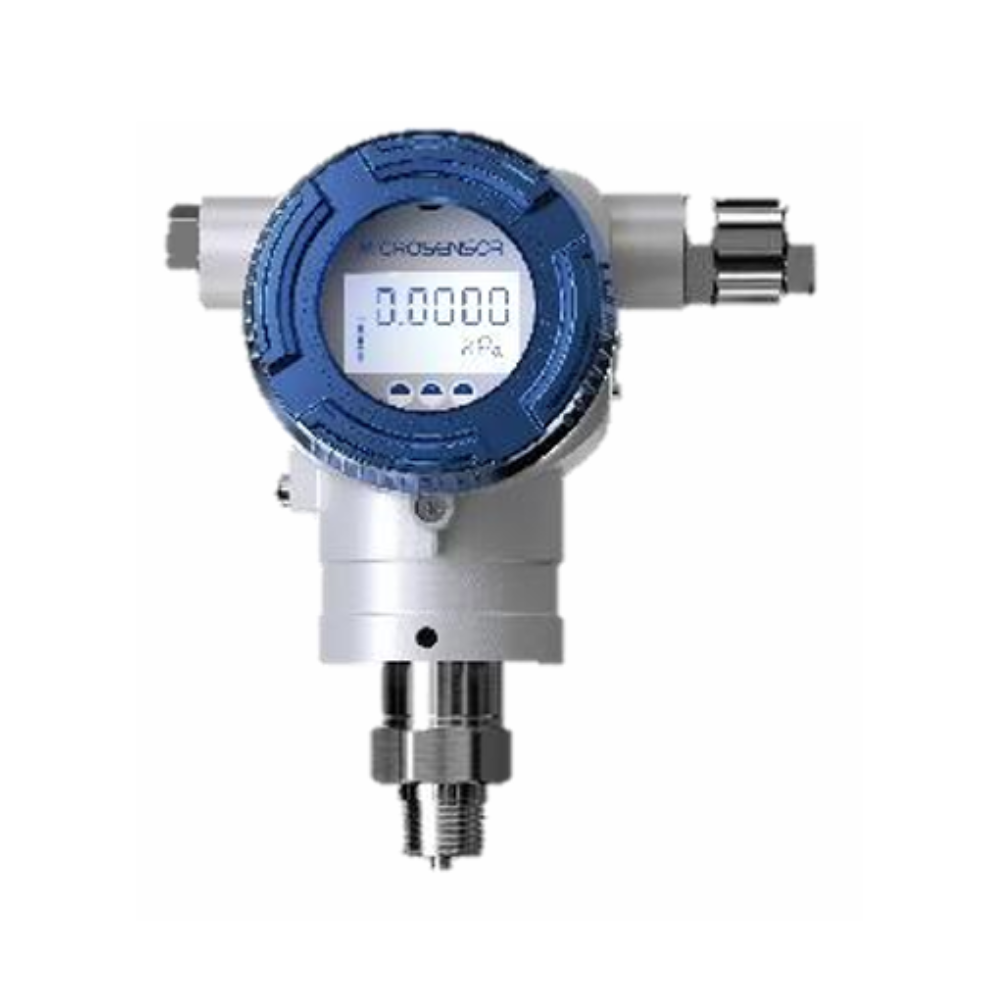

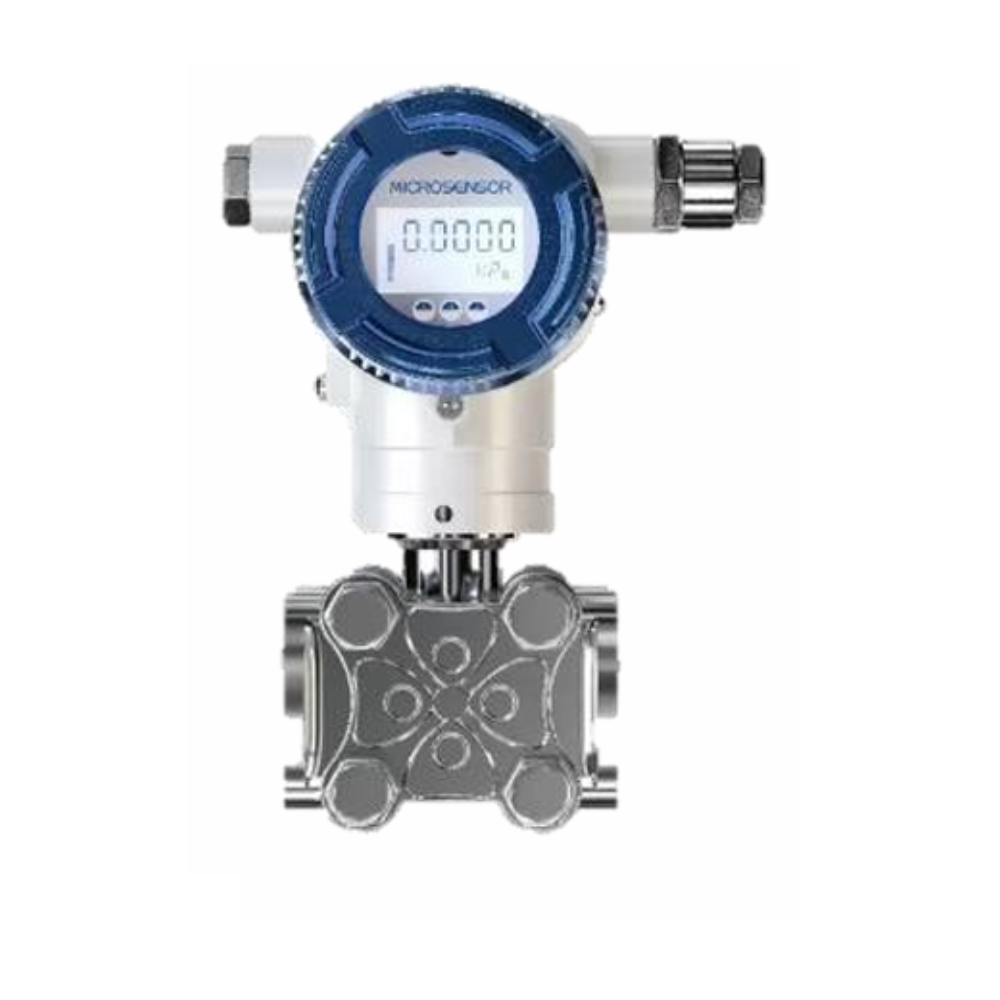

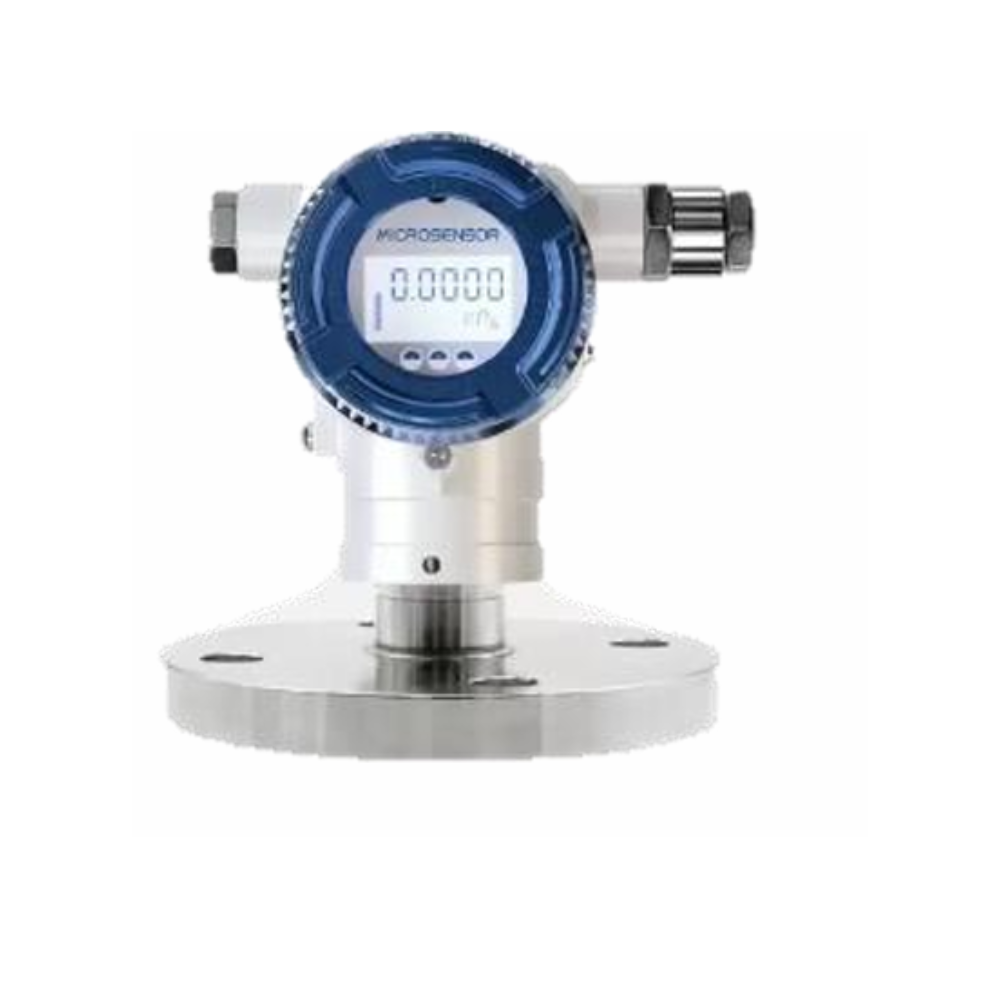

Smart Pressure Transmitter

High precision pressure measurement for industrial applications

Product Overview

Smart Pressure Transmitters are designed for accurate measurement of pressure in liquids, gases, steam, and oil applications. Built with robust housing and explosion-proof design, these transmitters ensure reliability in harsh industrial environments.

Application: Chemicals, Liquid, Gas, Steam, Oil
Range: -1 to 600 bar
Accuracy: ±0.1%
Output: 4–20 mA / HART
Supply: 24 V DC (Two Wire)
Explosion Proof with IP65 Protection

Download Datasheet Get Quote

Technical Specifications

Application	Chemicals, Liquid, Gas, Steam, Oil
Accuracy	±0.1%
Range	-1 to 600 bar
Housing Material	Aluminum / Stainless Steel
Wetted Material	SS316 / Ceramic / Tantalum / Hastelloy
Temperature	-40 to 150°C
Output	4–20 mA / HART
Supply	24 V DC (Two Wire)
Protection	Explosion Proof, IP65
Threading	½” NPT & ¼” NPT
Make	MDS
