Reliable flow measurement for steam, gas & liquid applications

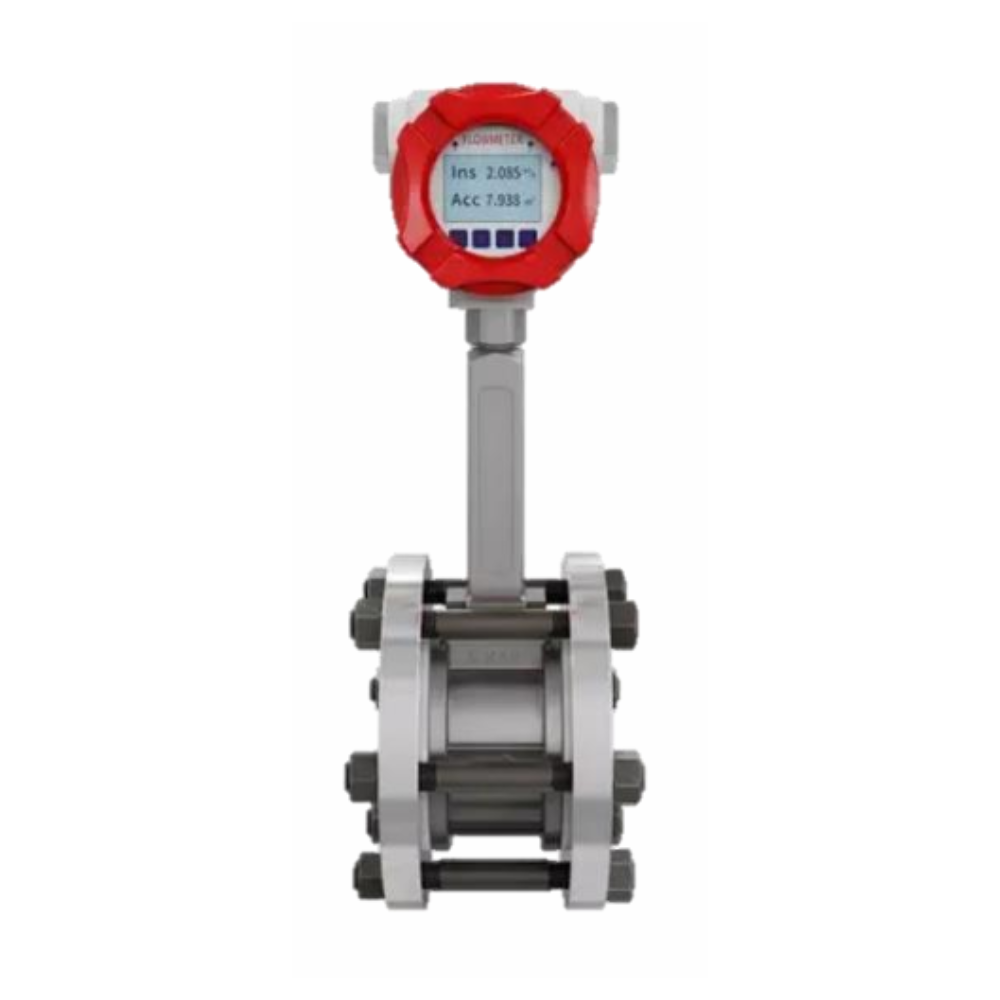

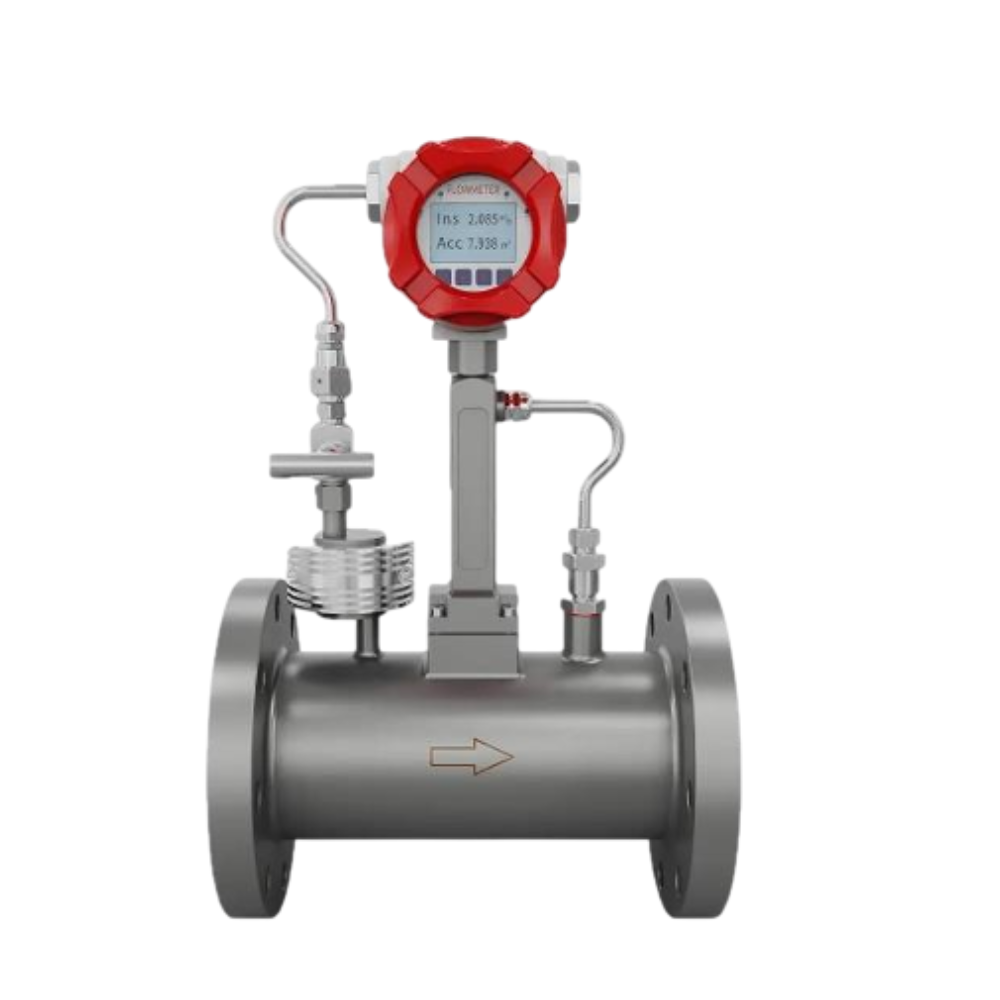

Vortex Flow Meter operates on the Kármán vortex principle and is ideal for measuring flow of steam, gas and liquids. It offers stable performance, low maintenance and high accuracy in harsh environments.
| Application | Water, Pharma, Gas, Steam, Chemical, Food & Beverages |
|---|---|
| Power Supply | 24 VDC |
| Output | 4–20 mA/HART |
| Tube MOC | SS 304 / SS316 / SS316L |
| Display Part | Aluminium + Organic Glass |
| Process Connection | DN 15 TO 150 MM |
| Medium Pressure | 10 kg |
| Medium Temperature | 25 – 120°C |
| Accuracy | ±1% |
| Indicator | Flow Rate & Totalizer |
| Connection | Thread (M) / Flange |
| Protection & Approvals | ATEX, IECEx, FLP 2A 2B, CIMFR Certified |
| Make | Auto Instruments LTD / MDS |
